LargeConv: multiresolution large-kernel tests

This notebook validates the learned Down x L -> compact HealPixConv -> Up x L implementation. It checks automatic kernel planning, partial NESTED patches, shuffled cell ordering, constant preservation, receptive field, CUDA/autograd and a small teacher/student training problem.

%load_ext autoreload
%autoreload 2

import copy
import time

import healpix_geo
import matplotlib.pyplot as plt
import numpy as np
import torch

from healpix_analyse import LargeConv

device = torch.device("cuda" if torch.cuda.is_available() else "cpu")
torch.manual_seed(0)
np.random.seed(0)
print("device:", device)

device: cuda

Build a partial NESTED patch

The identifiers are shuffled deliberately. LargeConv sorts them for its sparse multiresolution operators and restores this original order before returning. The patch is wider than the nominal 33-pixel receptive field to leave an interior region for visual inspection.

LEVEL = 6
NSIDE = 2**LEVEL
CENTRE = (30.0, 20.0)
RADIUS_DEG = 35.0

cell_ids, _, _ = healpix_geo.nested.cone_coverage(
    CENTRE, RADIUS_DEG, LEVEL, ellipsoid="sphere"
)
cell_ids = np.asarray(cell_ids, dtype=np.int64)
rng = np.random.default_rng(42)
rng.shuffle(cell_ids)
lon, lat = healpix_geo.nested.healpix_to_lonlat(
    cell_ids, LEVEL, ellipsoid="sphere"
)
lon = np.asarray(lon)
lat = np.asarray(lat)
print("patch cells:", len(cell_ids))

patch cells: 4682

Automatic 33x33 plan

A fine radius of 16 pixels becomes a radius of 2 pixels after three resolution reductions, hence a compact 5x5 kernel. Two reductions would still require 9x9 and would exceed the configured limit of 7.

start = time.perf_counter()
layer = LargeConv(
    level=LEVEL,
    in_channels=1,
    out_channels=1,
    kernel_sz=33,
    max_compact_kernel_sz=7,
    cell_ids=cell_ids,
    ellipsoid="sphere",
    weight_norm="l1",
    up_norm="col_l1",
    device=device,
    dtype=torch.float32,
)
construction_seconds = time.perf_counter() - start

assert layer.n_levels == 3
assert layer.compact_kernel_sz == 5
assert layer.coarse_nside == NSIDE // 8
assert layer.effective_kernel_sz == 33
assert layer.weight.shape == (1, 1, 1, 25)
for down, up in zip(reversed(layer.down_layers), layer.up_layers):
    down_matrix = torch.sparse_coo_tensor(
        down._M_indices, down._M_values, size=down._M_size, device=device
    ).coalesce()
    expected_up = down_matrix.transpose(0, 1).coalesce()
    actual_up = torch.sparse_coo_tensor(
        up._M_indices, up._M_values, size=up._M_size, device=device
    ).coalesce()
    assert torch.equal(actual_up.indices(), expected_up.indices())
    assert torch.allclose(actual_up.values(), expected_up.values())
    assert np.array_equal(up.cell_ids_out, down._cell_ids_in)
print(layer)
print(f"construction: {construction_seconds:.3f} s")
print("fine pixels by level:", [len(cell_ids)] + [down.N_out for down in layer.down_layers])
direct_terms = len(cell_ids) * 33**2
compact_terms = layer.conv.K * layer.compact_kernel_sz**2
print(f"nominal gather-term reduction: {direct_terms / compact_terms:.1f}x")

LargeConv(
  level=6, nside=64, in=1, out=1, requested_kernel=33, compact_kernel=5, levels=3, effective_kernel=33, gauges=1, partial=True
  (down_layers): ModuleList(
    (0-2): 3 x HealPixDown()
  )
  (conv): HealPixConv(level=3, nside=8, in=1, out=1, kernel_sz=5, P=25, G=1, gauge='phi', partial=True)
  (up_layers): ModuleList(
    (0-2): 3 x HealPixUp()
  )
)
construction: 0.324 s
fine pixels by level: [4682, 1211, 324, 93]
nominal gather-term reduction: 2193.0x

Constant preservation

The compact kernel is set to a centred unit impulse. Any remaining difference from one is caused by the Down/Up round trip and partial-patch boundaries, not by a resized kernel.

compact_weight = np.zeros((1, 1, 25), dtype=np.float32)
compact_weight[0, 0, 12] = 1.0
layer.set_compact_kernel(compact_weight, bias=np.zeros(1), requires_grad=True)

constant = torch.ones(len(cell_ids), device=device)
constant_out = layer(constant)
constant_error = (constant_out - constant).abs()
print("constant mean absolute error:", constant_error.mean().item())
print("constant maximum absolute error:", constant_error.max().item())
assert constant_out.shape == constant.shape
assert torch.isfinite(constant_out).all()

constant mean absolute error: 5.933729951834721e-08
constant maximum absolute error: 2.980232238769531e-07

Shapes, batches and autograd

batch = torch.randn(3, 1, len(cell_ids), device=device, requires_grad=True)
output = layer(batch)
loss = output.square().mean()
loss.backward()

assert output.shape == (3, 1, len(cell_ids))
assert batch.grad is not None and torch.isfinite(batch.grad).all()
assert layer.weight.grad is not None and torch.isfinite(layer.weight.grad).all()
print("output shape:", tuple(output.shape))
print("input gradient norm:", batch.grad.norm().item())
print("kernel gradient norm:", layer.weight.grad.norm().item())

output shape: (3, 1, 4682)
input gradient norm: 0.00044165970757603645
kernel gradient norm: 0.008403155952692032

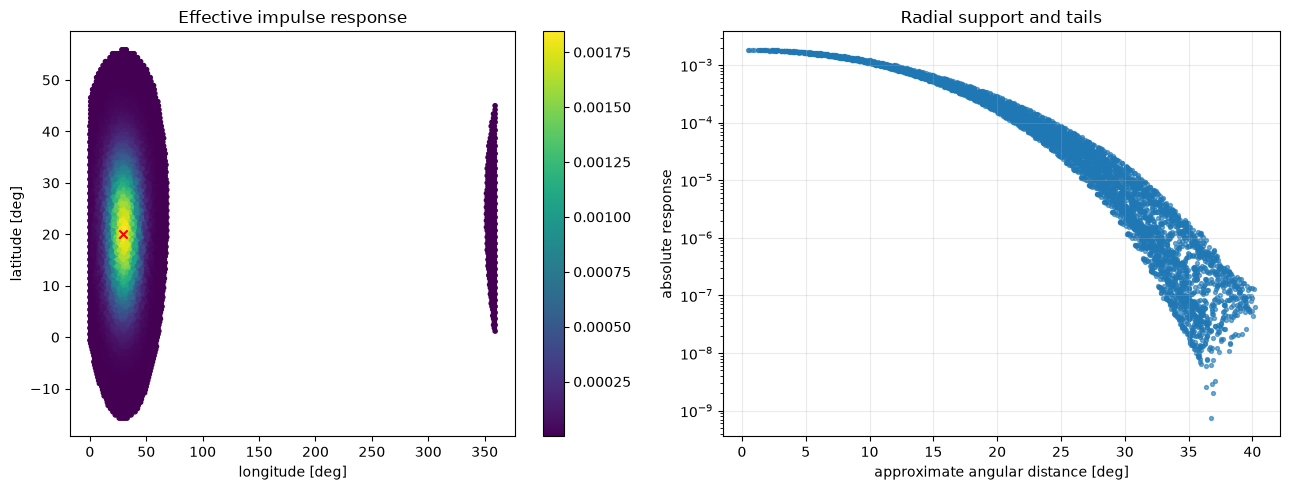

Effective receptive field

An impulse is placed at the cell closest to the requested patch centre. The response visualises the effective fine-resolution kernel, including all smoothing and interpolation performed by Down and Up.

dlon = ((lon - CENTRE[0] + 180.0) % 360.0) - 180.0
centre_index = np.argmin(dlon**2 + (lat - CENTRE[1])**2)
impulse = torch.zeros(len(cell_ids), device=device)
impulse[centre_index] = 1.0
response = layer(impulse).detach().cpu().numpy()

fig, axes = plt.subplots(1, 2, figsize=(13, 5))
points = axes[0].scatter(lon, lat, c=response, s=9, cmap="viridis")
axes[0].scatter(lon[centre_index], lat[centre_index], marker="x", c="red")
axes[0].set_xlabel("longitude [deg]")
axes[0].set_ylabel("latitude [deg]")
axes[0].set_title("Effective impulse response")
plt.colorbar(points, ax=axes[0])
distance = np.sqrt(dlon**2 + (lat - CENTRE[1])**2)
axes[1].scatter(distance, np.abs(response), s=8, alpha=0.6)
axes[1].set_yscale("log")
axes[1].set_xlabel("approximate angular distance [deg]")
axes[1].set_ylabel("absolute response")
axes[1].set_title("Radial support and tails")
axes[1].grid(True, alpha=0.25)
plt.tight_layout()

End-to-end learning of the compact kernel

A frozen teacher and a trainable student share the same Down/Up geometry but use different compact kernels. Decreasing loss demonstrates that the compact weights are learned through the complete effective large convolution.

teacher = copy.deepcopy(layer).eval()
student = copy.deepcopy(layer).train()
with torch.no_grad():
    teacher.weight.normal_(mean=0.0, std=0.15)
    teacher.bias.fill_(0.05)
    student.weight.zero_()
    student.bias.zero_()
for parameter in teacher.parameters():
    parameter.requires_grad_(False)

training_maps = torch.randn(4, 1, len(cell_ids), device=device)
with torch.no_grad():
    targets = teacher(training_maps)
optimizer = torch.optim.Adam(student.parameters(), lr=5e-2)
losses = []
for step in range(8):
    optimizer.zero_grad()
    prediction = student(training_maps)
    train_loss = torch.mean((prediction - targets).square())
    train_loss.backward()
    optimizer.step()
    losses.append(train_loss.item())
    print(f"step {step:02d}: {losses[-1]:.6e}")

assert np.isfinite(losses).all()
assert min(losses[1:]) < losses[0]

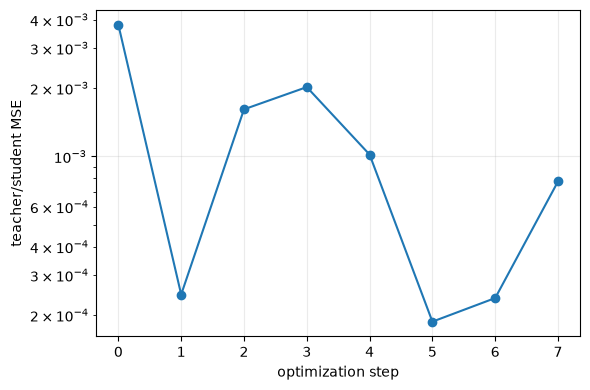

plt.figure(figsize=(6, 4))
plt.semilogy(losses, marker="o")
plt.xlabel("optimization step")
plt.ylabel("teacher/student MSE")
plt.grid(True, alpha=0.25)
plt.tight_layout()

step 00: 3.793793e-03
step 01: 2.464888e-04
step 02: 1.611137e-03
step 03: 2.018646e-03
step 04: 1.018261e-03
step 05: 1.871863e-04
step 06: 2.378205e-04
step 07: 7.755454e-04

NumPy interoperability

numpy_input = np.ones(len(cell_ids), dtype=np.float32)
numpy_output = layer(numpy_input)
assert isinstance(numpy_output, np.ndarray)
assert numpy_output.shape == numpy_input.shape
print("NumPy output:", numpy_output.shape, numpy_output.dtype)

NumPy output: (4682,) float32
